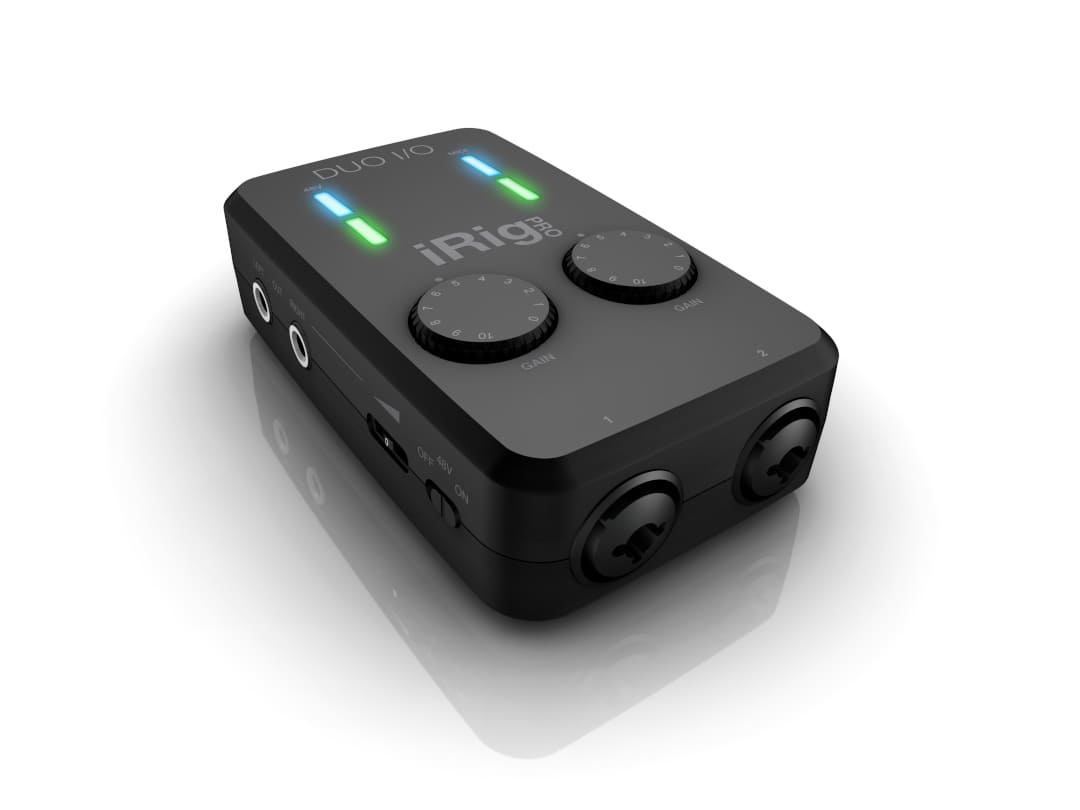

iRig Pro Duo I/O オーディオインターフェイス

Specs

iRig Pro Duo I/O Specifications

Microphone Input

• Microphone Input: 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
• Microphone Input Level: from 6 mVpp to 1.4 Vpp
• Microphone Input Impedance: 3,2 kOhms
• Gain Range: 50 dB
• Phantom Power: +48V ± 4V
• Frequency Response: 20 Hz to 20 kHz (+-1.5dB)
• Input Noise: -103 dB(A), -97 dB RMS

Instrument Input

• Instrument Input: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
• Instrument Input Level: from 30 mVpp to 6.9 Vpp
• Instrument Input Impedance: 1 MOhms
• Gain Range: 27 dB
• Frequency Response:
  • from 2 Hz to 21 kHz (-3dB) Gain @ min
  • from 5 Hz to 21 kHz (-3dB) Gain @ max
• Input Noise:
  • -104 dB(A) Gain @ min
  • -102 dB(A) Gain @ max

Line Output

• Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
• Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
• Maximum Output Level: +16 dBu into 600 Ohms balanced load
• Frequency Response: from 10 Hz to 21 kHz (-3dB)
• Output Dynamic Range: 106 dB(A)
• Output Impedance: 150 Ohms balanced

Common

• AD and DA Resolution: 24-bit
• Sampling Rate: 44.1 kHz and 48 kHz
• Power: USB bus power, battery power (2xAA – included), or DC power supply (9VDC, from 500mA up, positive outside – not included)
• Metering: Multicolor LED)
• Size: 75mm/2.95″ x 127mm/5″ x 37mm/1.46″
• Weight: 197.2g/6.96oz (batteries excluded)
• Battery Life:
  • Recording – Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline)
  • Playback – Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline)

*Max load condition: both inputs connected to two 1,5mA phantom powered loads, input gains set to maximum, outputs set to maximum.
**Min load condition is as follows: music playing, phantom power OFF.

Package includes

• iRig Pro Duo universal dual channel Audio-MIDI interface
• Lightning to Mini-DIN connection cable (60cm/23.62″)
• USB-C to Mini-DIN connection cable (60cm/23.62″)
• USB to Mini-DIN connection cable (60cm/23.62″)
• 2x 2.5mm TRS male to MIDI female adapter (10cm/3.9″)
• 2 x 1.5V AA Battery

Dimensions

• Size: 75mm/2.95″ x 127mm/5″ x 37mm/1.46″
• Weight: 197.2g/6.96oz (batteries excluded)

Compatibility

iOS Devices

Compatible with iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPad Pro 10.5-inch, iPad Pro 12.9-inch (2nd generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch (1st generation), iPad Air 2, iPad Air, iPad mini 4, iPad mini 3, iPad mini 2, iPad (6th generation), iPad (5th generation), iPod touch (6th generation). iOS 7.0 or later is required.

Computers

Mac®: Mac OS X 10.6 or later. One free USB port.

Windows®: One free USB port. For low latency, the IK Multimedia’s iRig audio driver must be installed. Download the iRig ASIO driver here.

Android Devices

Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.
